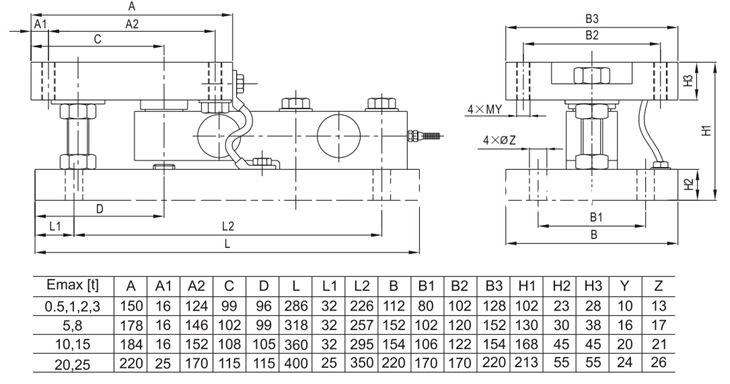

0.5-20噸靜載反應釜稱重模塊BS-TW 合金鋼結構；可直接安裝在地上或者基礎結構上；使用懸臂梁CA-SB傳感器；支撐螺栓,防止設備傾覆；表層鍍鎳防腐處理；適用于平臺秤、攪拌站和配料秤等；Features 主要特點● Alloy steel construction throughout● Mounts to floor or structural support directly● CA-SB(single ended shear beam load cell) installed● Support bolt to avoid overturn● Protected against corrosion by nickel-plated treatment● Suitable for floor scales, blending & mixing systems and batching systems, etc.● 合金鋼結構● 可直接安裝在地上或者基礎結構上● 使用懸臂梁CA-SB傳感器● 支撐螺栓,防止設備傾覆● 表層鍍鎳防腐處理● 適用于平臺秤、攪拌站和配料秤等Dimension 尺寸(可替代梅特勒-托利多 FW 稱重模塊）Specification 技術參數Capacities量程0.5t 1t 2t 3t 5t 7.5t 10t 15t 20t 25t Rated Output額定輸出2.0mV/V ±0.1%Zero Balance零點平衡±1% of rated outputCreep after 30 minutes蠕變±0.03% of rated outputNonlinearity非線性±0.03% of rated outputHysteresis滯后±0.03% of rated outputRepeatability重復性±0.03% of rated outputTemp. effect on output靈敏度溫漂≤0.002% of applied output/?CTemp. effect on zero零點溫漂≤0.002% of rated output/?CSafe Temp. Range可用溫度范圍-10?C to + 70?CTemp. Compensated溫度補償范圍-10?C to + 40?CSafe Overload安全載荷150%Input Impedance輸入阻抗387 ohm ± 20 ohmOutput Impedance輸出阻抗350 ohm ± 5 ohmInsulation Resistancejue緣阻抗≥5000 M ohm (50V DC)Rated Excitation推薦激勵電壓10V DC/ACMaximum Excitationzui大激勵電壓15V DC/ACCable Length導線長度3mCable Color Code導線顏色Red(+E) Black(-E) Green(+S) White(-S)上海廣志自動化設備是專業生產稱重傳感器的廠家，歡迎廣大客戶前來咨詢，電話021-60518382 上海廣志自動化設備是專業生產稱重傳感器的廠家，歡迎廣大客戶前來咨詢，電話021-60518382 上海廣志自動化設備是專業生產稱重傳感器的廠家，歡迎廣大客戶前來咨詢，電話021-60518382
