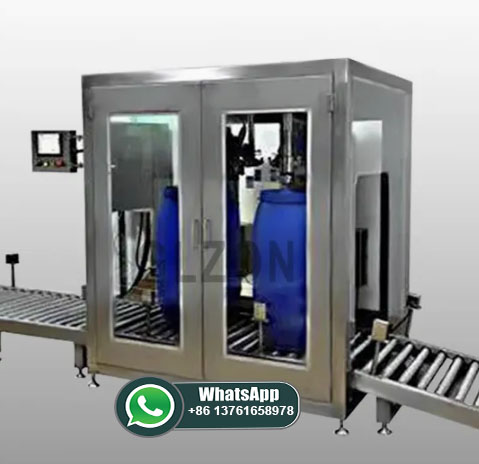

Chemical Alcohol/Coating/Paint/Lubricant/Engine/Edible Oil/Anti-Diluent Drum Explosion-Proof Filling Machine for 200L
Packaging & Delivery
Product Description



Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
Filling range(L) | 100-400L |
power supply | AC220V 50/60Hz |
Air pressure (Mpa) | 0.6-0.8MPA |
Filling accuracy (%) | ±0.2% |
Speed(can/hour) | 30-50 barrels(Depending on the material flow rate) |
Material | sus304/sus316/carbon steel/PTFE |
? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable. |
? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash. |
? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean. |
? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications. |
? Good stability, reduce losses, save costs, improve operating efficiency, and reduce manual operation pressure. |


Use below the liquid level in the barrel type, suitable for 200L single barrel filling;
The unique design of the adjustable pneumatic ball valve and spray valve not only increases the speed of the grain; but also ensures the accuracy of the grain. In addition, it can minimize the dripping of residual liquid when filling is completed.
The air collection hood can avoid filling the release of volatile gases during installation, effectively protects operators.
? During operation, as long as the empty barrel is loaded onto the empty barrel pipeline, the machine will automatically stop, and the nozzle device will automatically place the empty barrel directly under the nozzle of the nozzle;
? The nozzle valve will automatically drop into the barrel mouth, the empty barrel will automatically be peeled, and then the specific gravity will be accurately measured at two speeds, and the nozzle valve will automatically connect to the outside of the barrel, enter the full barrel pipeline, and reach the capping position;
? After the pipeline machine stops, the cap is placed manually, the capping machine pulls down the cap, and the weighing is completed.


Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy.
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function.


Our company
Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic
high-tech enterprise located in Songjiang District, Shanghai. This is
Shanghai's large industry and large equipment manufacturing base.
"High excellence and high compatibility" is the manufacturing guideline
of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company
has passed the IS09001 international quality system certification and
IS014001 environmental management system certification. The
mechanical equipment is gradually passing the "CE certification".
Shanghai Guangzhi Specializing in the production of packaging
machinery, customers are welcome to negotiate



Component brand

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
-
